Revit How To Make Top Level Of Roof Extend

For example if you are in the level 2 plan view of a multi story building and you select level 4 as the top revit keeps level 4 as the top even if you add levels between level 2 and level 4.

Revit how to make top level of roof extend. To indicate that it should extend upward 4000 mm above level 2 specify an upper limit of level 2 and a limit offset of 4000 mm. Normally and in most cases if a roof has two or more slope defining edges the orientation of the cut will be vertical. Display a floor plan view or a reflected ceiling plan view. As you place the cursor to create a level if the cursor aligns to an.

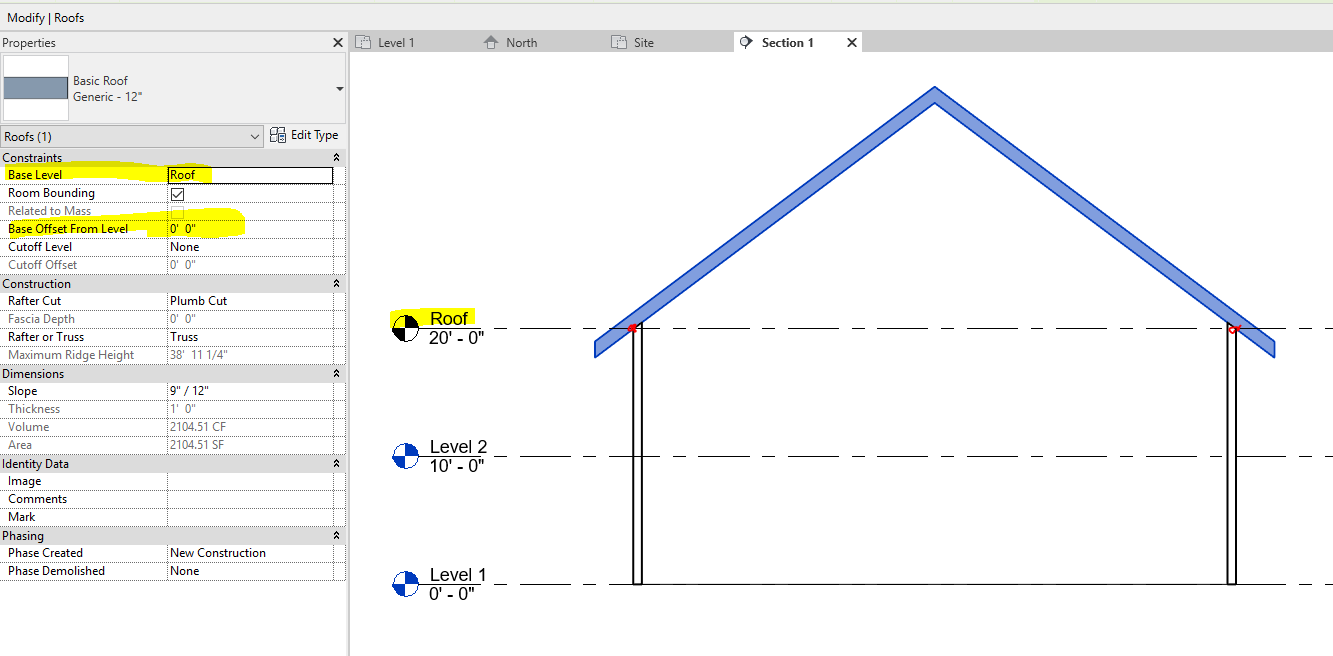

If you try to add a roof on the lowest level a dialog prompts you to move it to a higher level. Architecture tabdatum panel level structure tabdatum panel level place the cursor in the drawing area and click. Click architecture tabbuild panelroof drop down roof by footprint. To do this method you need to select the roof and edit the roof footprint.

Changing the slope angle if you see the symbol then the edge will be generated having slope. If you choose not to move the roof to a different level revit notifies you later if the roof. Click edit footprint to enter the sketch mode. In addition to creating a level for each story in a building you can also create reference levels such as sill level.

In the following section view. On the ribbon click level. You want to know how the orientation of the cut is determined. By default the limit offset is the distance between levels 10 or 4000 mm.

In the view range dialog levels used to define the visible range are absolute to the current level of the view. Creates a roof using the building footprint to define its boundaries.
