Rectangular duct reducer area calculation. A comprehensive duct layout indicating sizes design airflows pressure class and routing of the duct system. Beauty and health engineering finance life mathematics science. Then measure the length of the duct in inches and multiply by the circumference. Videos you watch may be added to the tv s watch history and influence tv recommendations.

Divide by 144 to determine how many square feet are in the duct area. If the design volume flow rate and velocity is 13 000 cfm and 4000 fpm respectively what is the h dimension in a rectangular duct if the w dimension is 14 inches ad q v 13 000 4000 3 25 ft2 multiply by 144 to get in2 468 in2 a d wh h a d w. This is the number of square inches in the duct area. Online calculator to calculate the area of a rectangular duct.

When the quantity take off is completed take 10 extra of duct this will resolve the quantity assumption. To calculate the rectangular duct area we need height width and length. To avoid this cancel. If playback doesn t begin shortly try restarting your device.

The types of fittings to be used based on the designer s calculations of fitting losses i e square versus 45 entry taps conical versus straight taps etc. Calculating area of bend required to following calculation 2 x area of circle based on duct width 150mm as radius 4 area of circle based on 150mm as radius 4 height of duct x 2 xpi x duct width 150mm 4 height of duct x 2x pi x 150mm 4 calculating reducer required trapezium calculation upvote 3. The larger perimeter also means more air will come into contact wit the material and this adds friction to the system. The area of rectangular duct we can calculate by this general formula area 2 w d lenth or we can also find out revit software.

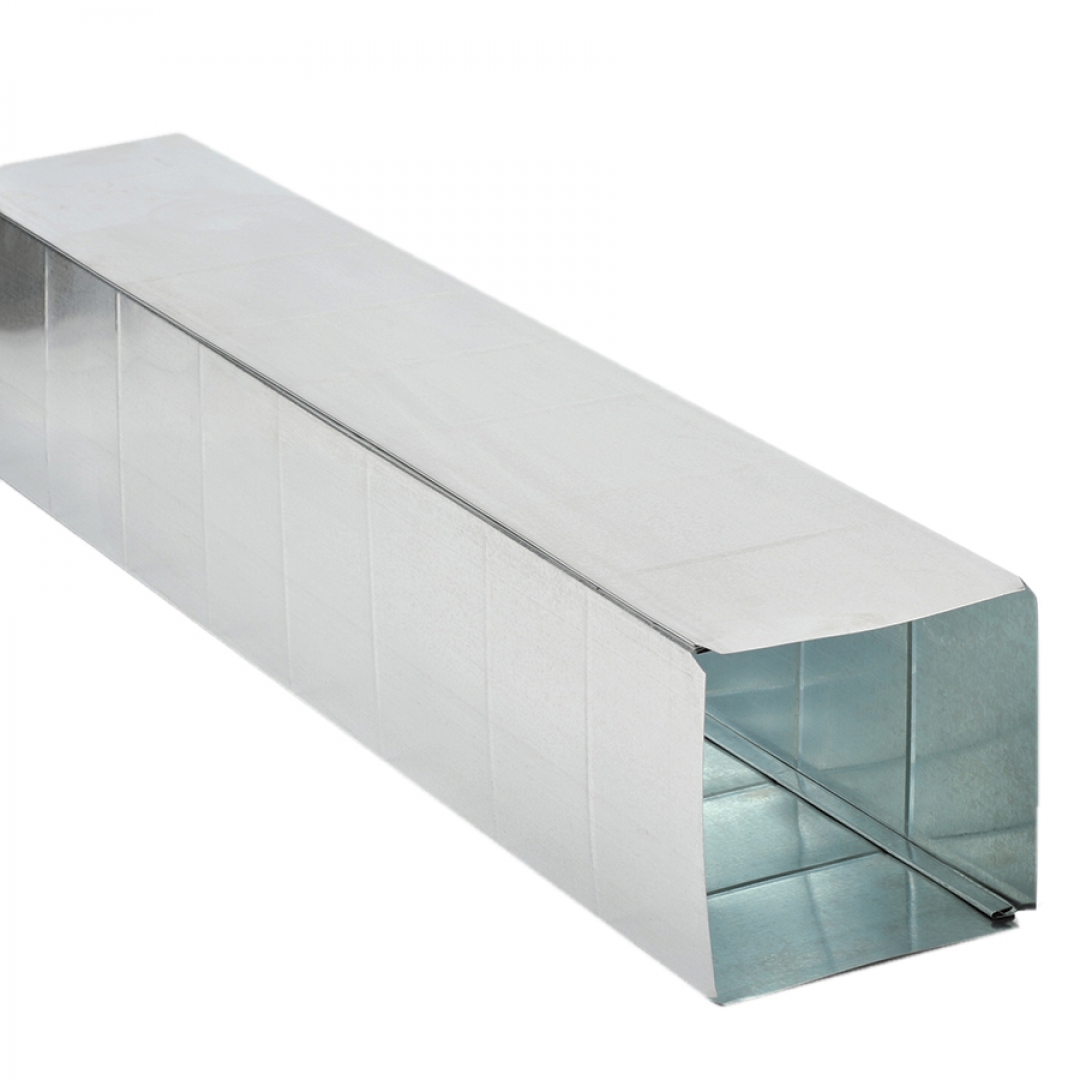

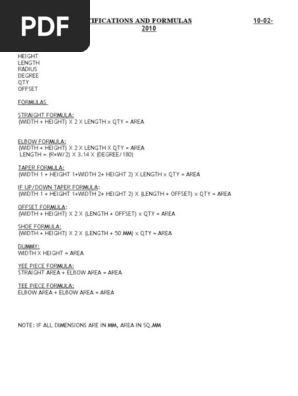

Hvac duct quantity weight and area calculator download hvac duct quantities weight and area calculation sheets. Calculating the area of a rectangular duct line. A rectangular duct with an equal cross sectional area has a perimeter of 3 87m the rectangular duct therefore requires more metal for its construction this adds more weight and costs to the design.
